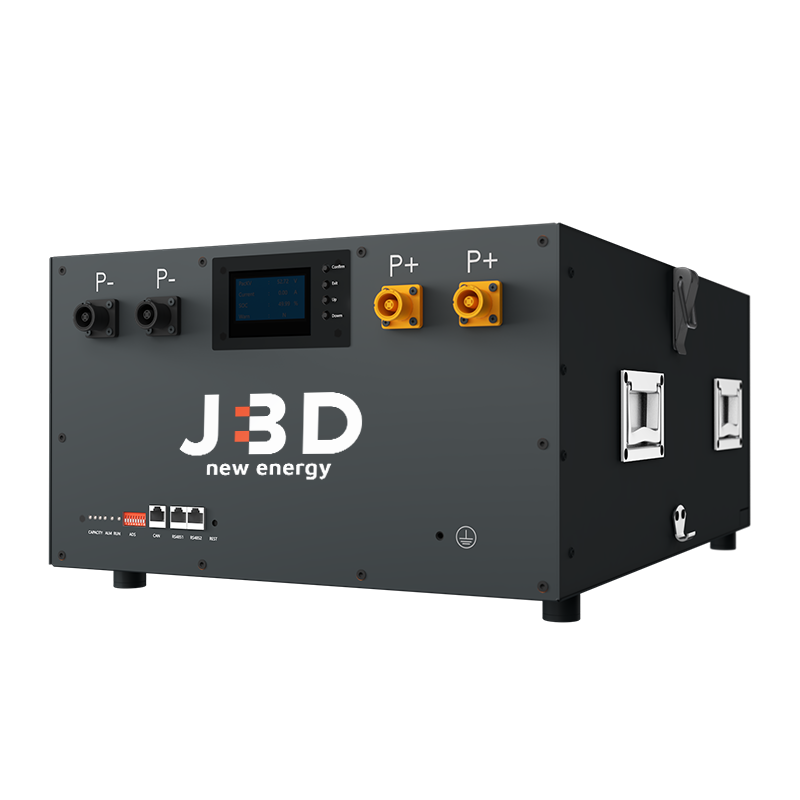

JBD 230S Diy kit battery box for 48V Home solar energy storage system suitable 206Ah 200Ah EVE 230Ah LiFePo4 Lithium Phosphate Battery Cell

1.with 3.2inch lcd screen
2.400A Fuse
3.Use SEPLOS 16S 200A BMS
4.Supports oem/odm
5.Support changing BMS brand
Contact Now
  • JBD engineer team has launched an energy storage solution, the JBD 230S, A DlY lifepo4 battery box that completely satisfies the demand for residential energy storage with solar photovoltaic panel systems.
  • This JBD 230S,diy kit is suitable with 200Ah, 206Ah, 230Ah Lifepo4 battery cells in 16S1P configuration, Featuring EN BMS 3.0, delivering enhanced performance and comprehensive protection for the entire battery pack.
  • Feature

    Suitable lithium battery

    Safer use

    Passive balancing

    Supports up to 32 battery packs in parallel

    Technical specifications

    BMS: Smart 16S 200A (Max 32pcs In Parallel)
    Communication protocol: CAN / RS485*2
    Waterproof class: lP20

    Battery Box Size: (L*W*H)600*439*252mm
    Weight: 30kg

    Display: LCD Screen

    Built-in battery management system

    CAN/RS485*2inverter communication



    Compatible cell information details
Model Brand Cell dmension electrode Distance
230S EVE 230Ah 53.7*173.6*204 MM 123MM
CALB 230AH 53.7*173.6*204 MM 123MM
CATL 228AH 53.8*173.9*200 MM 89MM
GF 206AH 53.8774.7*200.4 MM
LISHEN 202AH 53.7*73.6*200 MM





Package List
Item Main Part
1 1 * Battery Case (Cells Container, BMS Mount Panel, Top Panel, Fixed Bar, Top Bar, Top Cover)
2 1 * 48V 200A 16S Pace BMS
3 1 * 58V 400A Fuse
4 4 * Handle
5 2 * PCB Board for BMS and Cell Connection
6 3*Upper and Lower Latch lock
7 1*LCD Screen
8 1 * LCD Screen Sticker
9  4 * Button Cap
10 3 * Wires (LCD Screen wire, PCB board A, and PCB board Connector)
11 2 * Battery Terminals (P+ Terminal and P_ Terminal)
Other Components
1 6 * Copper bus bars (BMS connection)
2 15 *Aluminum bus bars (Cell connection)
3 10* Epoxy sheet (Between cell and the case)
4 26 * EVA Tape (Between cells)
5 1*PC sheet （Top cover）
Screws Details
1 12 *Phillip Hex M4*8mm (PcB board fix)
2 9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
3 7* Phillip Hex M6*25mm + Washer + Spring Set(Front Panel fix)
4 10 * Phillip Round M3*8mm + Washer + Spring Set(BMS and LcD Screen fix)
5 12*Phillip Pan M5*10mm (Latch fix)
6 16*Hexagon Socket Pan M4*10mm (P+/p- Terminals fix)
7 42 *Hexagon Socket Countersunk M4 *10mm (Handle and battery case)
8 4*Phillip Hex M6*14mm+Washer + Spring Set(foot fix)
9 5* Phillip Hex M8 *10mm + Washer + Spring Set (P+/p- Bus bar fix)
10 8* Phillip Round M5*10mm + Washer



Low Voltage 48V Energy storage solution -Suitable Inverters

( lf the inverter is not on the list, do not hesitate to get in touch with our engineer )
Brand Protocol Communication Versions
Pylontech CAN-Bus-ProtocoI-PYLON CAN V1.3
Goodwe Goodwe communication Protocol V1.5
Lolis CAN Communication Protoco V1.0
Sofar BMS CAN BUS Protocol V1.0
SMA FSs-ConnectingBat-TI-EN-20W V2.0
Victron Can-Bus Bms Protocol V1.0
LUXPOWER Luxpowertek Battery CAN Protocol V1.0
Studer Technical specification Studer BMS Protocol V1.03
TBB TBB BMS CAN Communication V.02 V1.02
Deye CAN-BuS-Protocol-PYLON-V.3 V1.0
Sorocec 2 CAN Protocol 1.0 V1.0
MEGAREVO Hybrid inverter 5K BMs Protocol V.01 V1.01
Amensolar CAN-BuS-Protocol-PYLON V1.0
MUST PM800F-CAN Communication Protoco V1.04.04
AFORE Luxpowertek Battery CAN Protocol V1.0
Pylontech RS485-Protocol-Pylon-Low-Voltage 485 V3.5
Voltronic Power Voltronic inverter And BMS 485 Communication Protocol V1.0
SRNE PACE BMS Modbus Protocol For RS485 V1.0
Deye RS485-Protocol-Pylon-Low-Voltage V1.0
