JBD 280P 51.2V diy kit box suit EVE 280Ah 300Ah 314Ah battery cell for home solar energy storage system 3A Active Balance 16S 300A BMS

1.With 4.3nch lcd screen
2Use JBD 16S300A BMS
3.Use 300A 1P circuit breaker
4.Active balance built-in
Contact Now
  • JBD engineer team has launched an energy storage solution, the JBD 280P, A DlY lifepo4 battery box that completely satisfies the demand for residential energy storage with solar photovoltaic panel systems.
  • This JBD 280P diy kit is suitable with 280Ah, 304Ah, 314Ah Lifepo4 battery cells in 16S1P configuration, Featuring EN BMS 3.0, delivering enhanced performance and comprehensive protection for the entire battery pack.

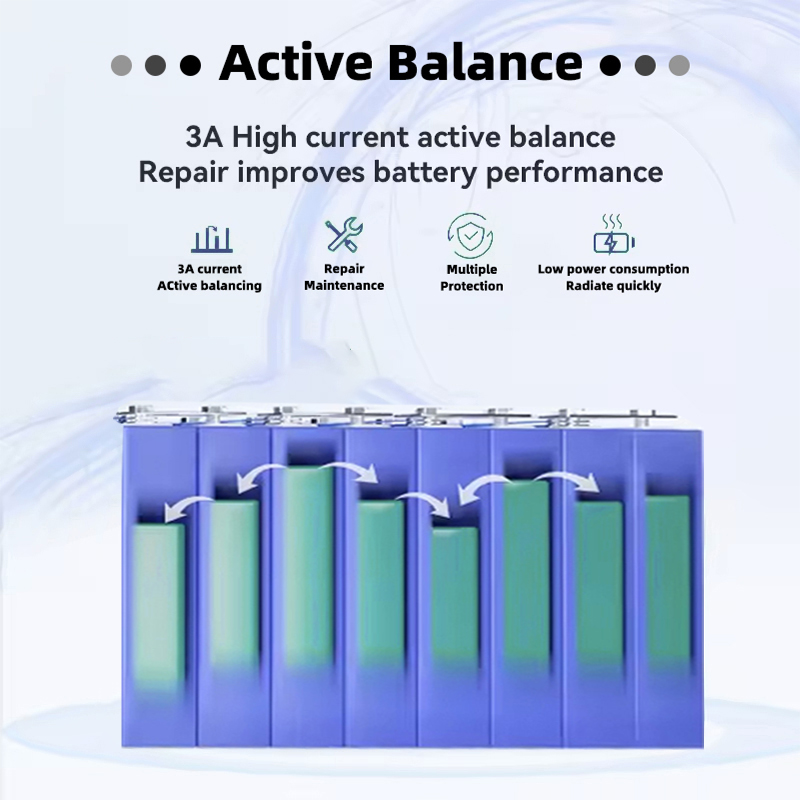

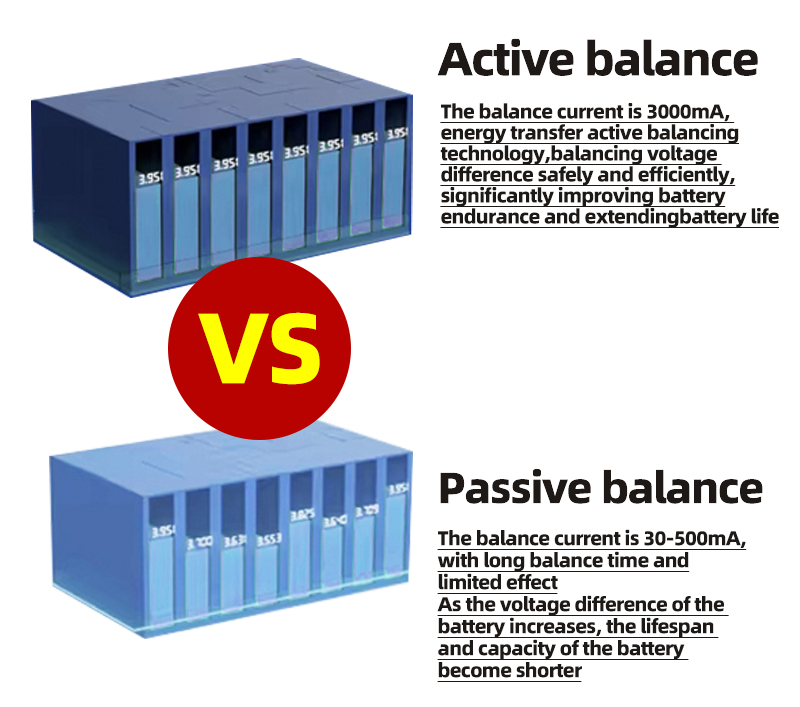

  • The active balancing function of 3A is currently the largest built-in active balancing on the market, and adopts a pole type balancing scheme to prolong the lifespan of BMS. Unlike JK BMS's capacitor balancing scheme, our scheme will not harm battery cells
    Feature

    Suitable lithium battery

    Safer use

    Active balance

    Supports up to 32 battery packs in parallel

    Technical specifications

    BMS: Smart 16S 200A (Max 32pcs In Parallel)
    Communication protocol: CAN / RS485*2
    Waterproof class: lP20

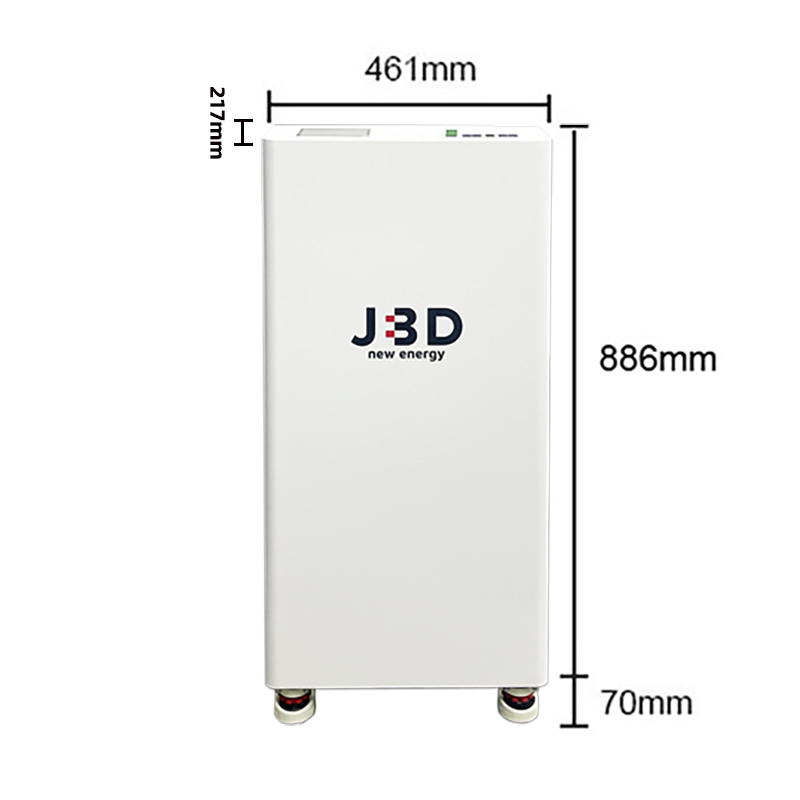

    Battery Box Size: (L*W*H)817*412*267mm
    Weight: 30kg

    Display: LCD Screen

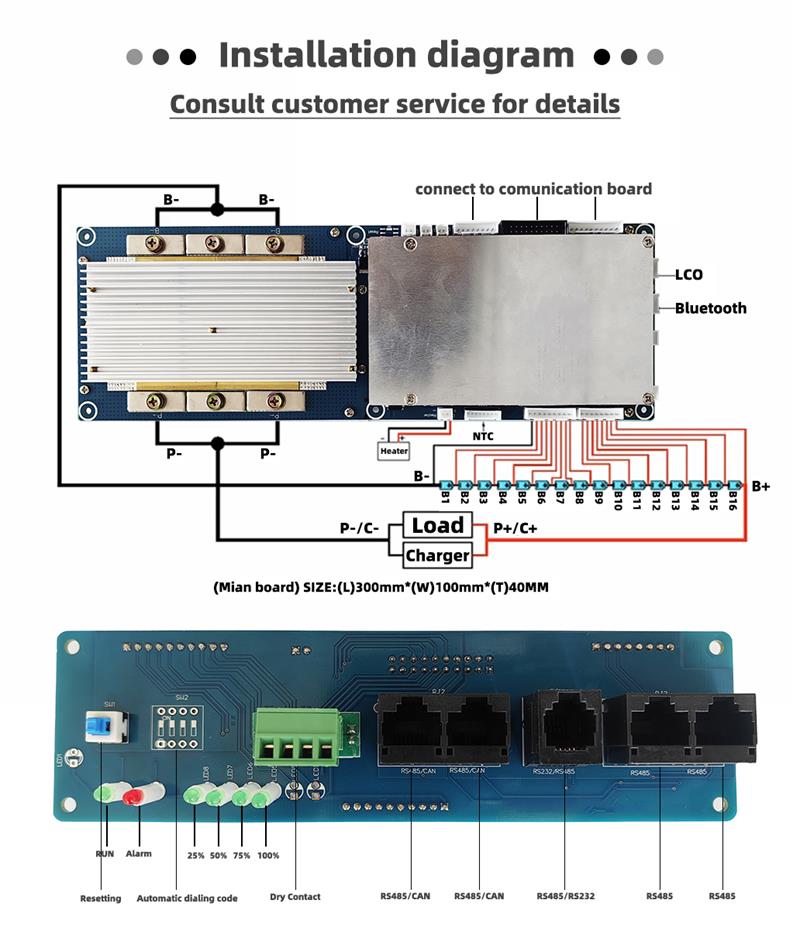

    Built-in battery management system

    CAN/RS485*2inverter communication



    Compatible cell information details
Model Brand Cell dmension electrode Distance
280L EVE 280Ah/304Ah 72*174*200MM 123MM
EVE 314Ah 72*174*204MM 123MM
Catl 280/304Ah 72*174*204MM 123MM
Lishen 280Ah/304Ah 72*174*204MM 123MM
GF 280Ah/304Ah 72*174*204MM 123MM
Gotion 280Ah/304Ah 72*174*204MM 123MM
Hithium 280Ah/304Ah 72*174*204MM 123MM





Package List
Item Main Part
1 1 * Battery Case (Cells Container, BMS Mount Panel, Top Panel, Fixed Bar, Top Bar, Top Cover)
2 1 * 48V 200A 16S Pace BMS
3 1 * 250A 1P circuit breaker
4 4 * Wheel
5 2 * PCB Board for BMS and Cell Connection
6 1 *LCD Screen
7 1 * LCD Screen Sticker
8 4 * Button Cap
9 3 * Wires (LCD Screen wire, PCB board A, and PCB board Connector)
10 1 *ON-OF Switch
11 2 * Battery Terminals (P+ Terminal and P_ Terminal)
Other Components
1 6 * Copper bus bars (BMS connection)
2 15 *Aluminum bus bars (Cell connection)
3 9 * Epoxy sheet (Between cell and the case)
4 28 * EVA Tape (Between cells)
5 40*PC Film
Screws Details
1 32 * Hex Flange Nut M6 (To Fix The Aluminum Bus Bars)
2 12 * Phillip Hex M4 * 8mm (PCB board fix)
3 13 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
4 7*Phillip Hex M5 *8mm + Washer + Spring Set(Top bar fix)
5 13 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS fix)
6 6 * Phillip Round M3 * 6mm + Washer + Spring Set(LcD Screen fix)
7 8 * Hexagon Socket Pan M4 * 10mm (P+/P_ Terminals fix)
8 30* Hexagon Socket Countersunk M4 * 10mm (Battery case and Top cover)
9 18 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix)
10 4 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P_ Bus bar fix)



Low Voltage 48V Energy storage solution -Suitable Inverters

( lf the inverter is not on the list, do not hesitate to get in touch with our engineer )
Brand Protocol Communication Versions
Pylontech CAN-Bus-ProtocoI-PYLON CAN V1.3
Goodwe Goodwe communication Protocol V1.5
Lolis CAN Communication Protoco V1.0
Sofar BMS CAN BUS Protocol V1.0
SMA FSs-ConnectingBat-TI-EN-20W V2.0
Victron Can-Bus Bms Protocol V1.0
LUXPOWER Luxpowertek Battery CAN Protocol V1.0
Studer Technical specification Studer BMS Protocol V1.03
TBB TBB BMS CAN Communication V.02 V1.02
Deye CAN-BuS-Protocol-PYLON-V.3 V1.0
Sorocec 2 CAN Protocol 1.0 V1.0
MEGAREVO Hybrid inverter 5K BMs Protocol V.01 V1.01
Amensolar CAN-BuS-Protocol-PYLON V1.0
MUST PM800F-CAN Communication Protoco V1.04.04
AFORE Luxpowertek Battery CAN Protocol V1.0
Pylontech RS485-Protocol-Pylon-Low-Voltage 485 V3.5
Voltronic Power Voltronic inverter And BMS 485 Communication Protocol V1.0
SRNE PACE BMS Modbus Protocol For RS485 V1.0
Deye RS485-Protocol-Pylon-Low-Voltage V1.0
